目录 JOMINI

工业零件 B2460/110

油桶

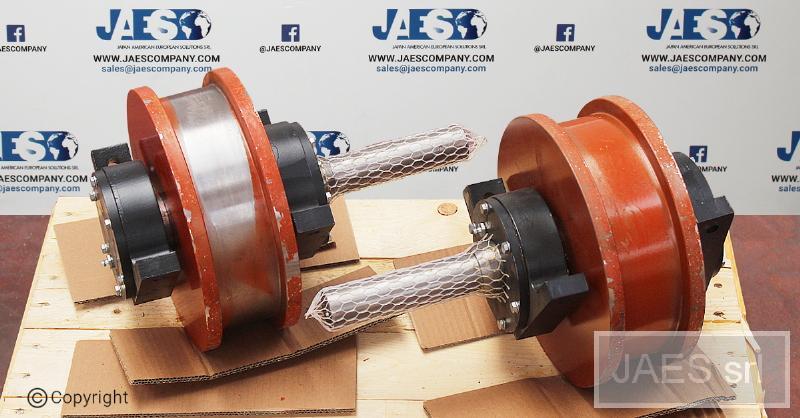

ASSEMBLY:WHEEL TYPE:BRIDGE DRIVE FOR:BRIDGE TRAVEL TREAD DIAMETER:250MM WHEEL ASSY CON SISTS OF:WHEEL 70045-1 ASSEMBLY: WHEEL MODEL NUMBER B2460/110 JOMINI GRU SNC PART NO. 70246-00/3969

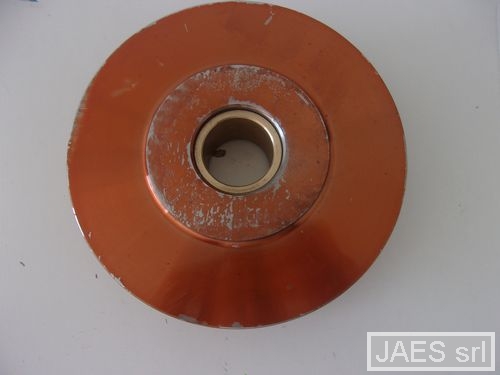

滑轮

SHEAVE

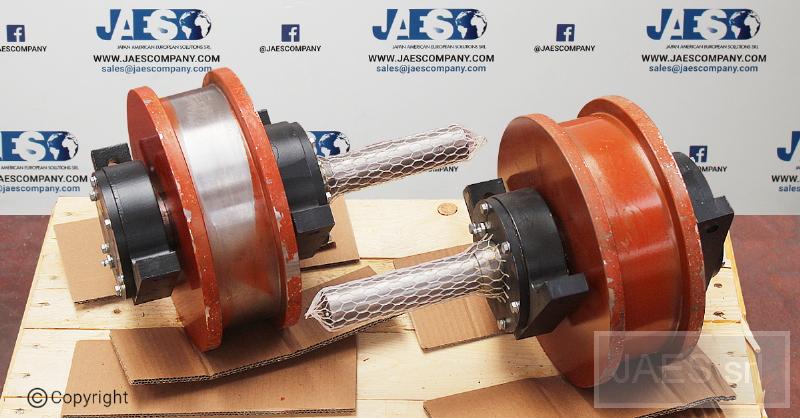

ASSEMBLY: WHEEL TYPE: BRIDGE DRIVE FOR BRIDGE TRAVEL TREAD DIAMETER: 250MM WHEEL ASSY ASSEMBLY: WHEEL MODEL NUMBER B2460/110 JOMINI GRU SNC PART NO. 70246-00

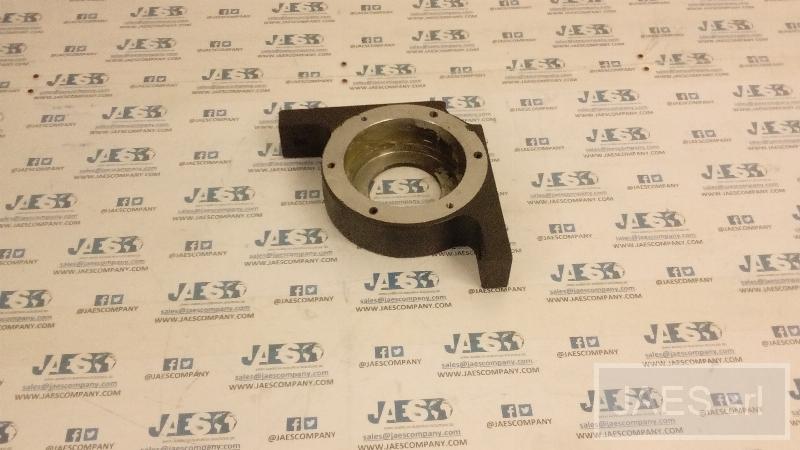

轴承 PART OF WHEEL ASSEMBLIES :70246-00/3969 AND 70240-00; SERIAL NUMBERS 3969m & 3970m;

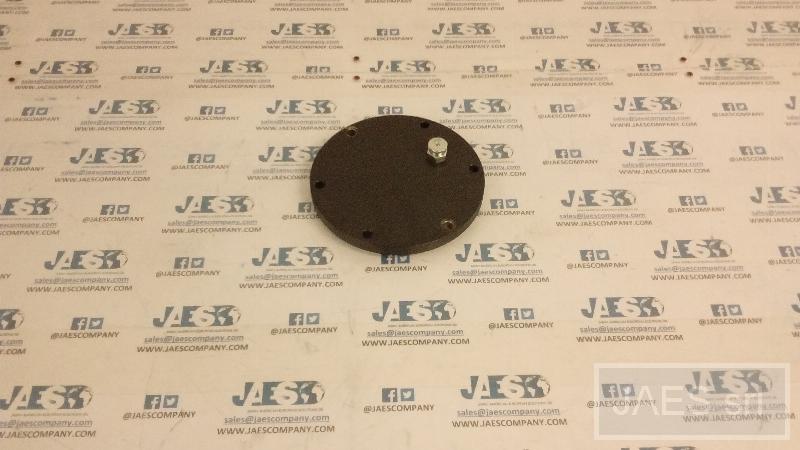

COVER

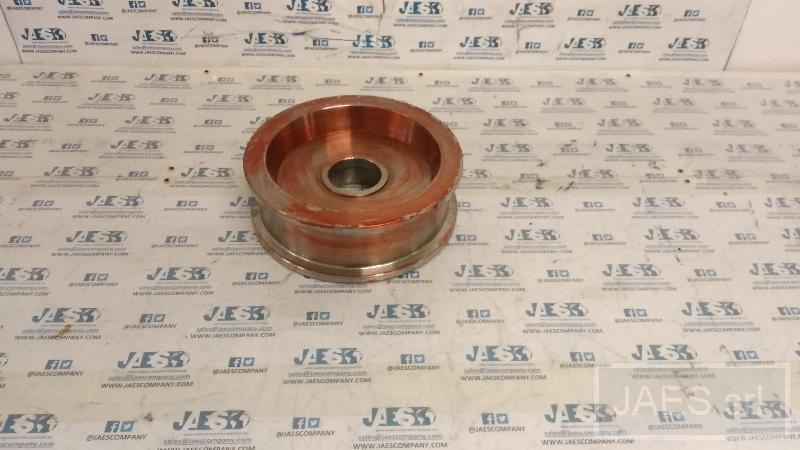

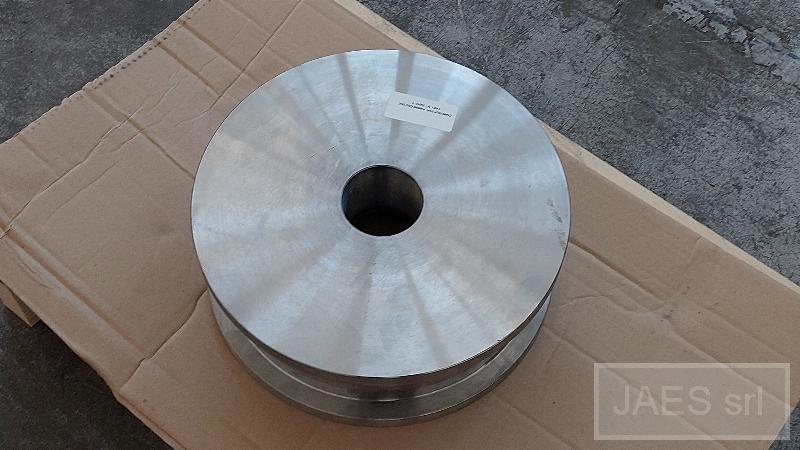

轮子 BORE:60mm SMOOTH(NO KEYWAY);THREAD DIAME TER:250mm;PART OF WHEEL ASSEMB LIES:70246-00/3969 AND 70240-0

轴承 PART OF WHEEL ASSEMBLIES:702 46-00/3969 AND 70240-00;SERIAL NUMBERS 3969m & 3970m;MODEL

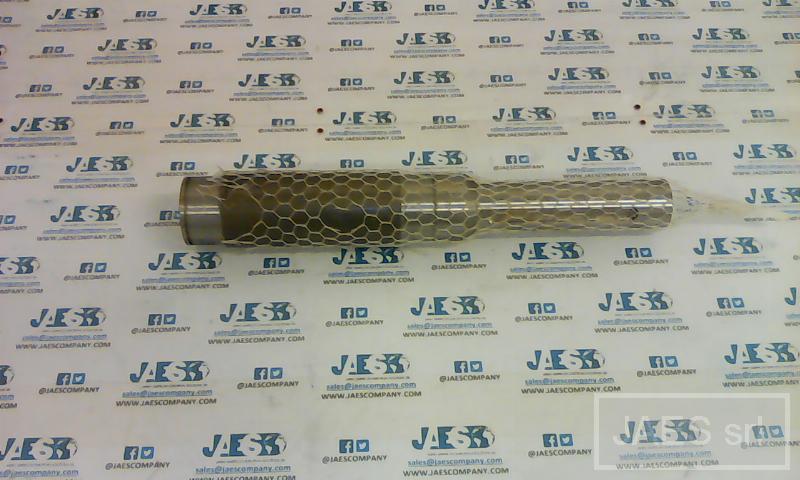

花键轴

轮子 - Ø200mm

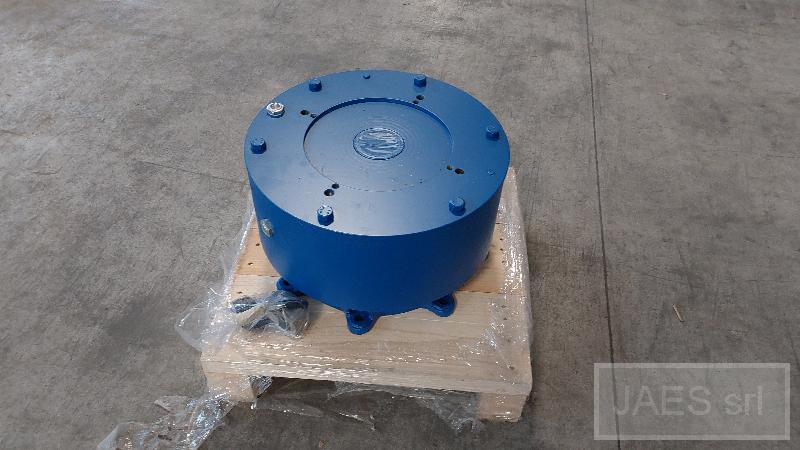

COMPLETE HOISTING GEAR BOX FOR 6 TON TUNNEL FURNCE CRANE

COMPLETE HOISTING GEAR BOX FOR 6 TON TUNNEL FURNACE CRANE, MF R: JOMINI CRANES

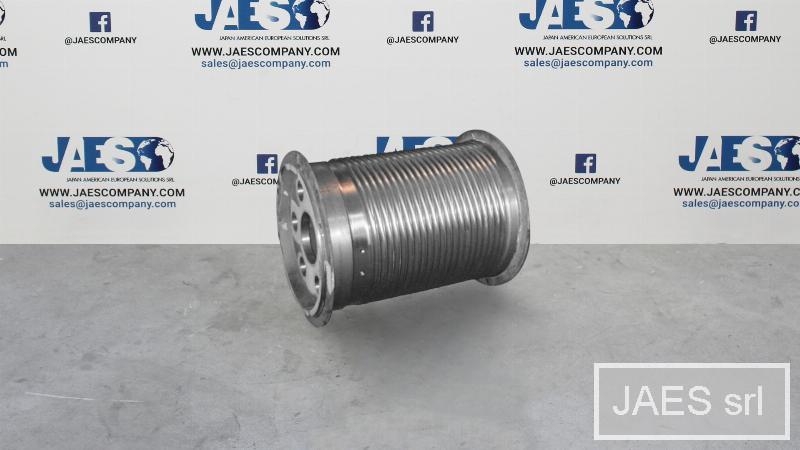

ASSEMBLY LOCKING MODEL NUMBER B2460/160 JOMINI GRU SAS PART NO. RCK40

MATERIAL TEXT: WHEEL: TYPE: BRIDGE BORE: 60MM SMOOTH (NO KEYWAY) THREAD DIAMETER: 250MM PART OF WHEEL ASSEMBLIES: 70246-00/3969 AND 70240-00 APPLICATION: IOMINI CRANE 03GB01 A/B JOB-H 1603 SERIAL NUMBERS 3969M & 3970M MODEL B2460/110 JOMINI GRU SNC PART NO. 70045-1 OR EQUIVALENT, IF APPROVED BY PURCHASING IN WRITTEN FORM IN ADVANCE DRAWING: 70246 00 3969 DRAWING.PDF VENDOR MATERIAL NO: 70045-1
