目录 TCM

SEAL FOR ROTARY SHAFT; TYPE: DOUBLE LIP WITH SPRING METAL CASE; MATERIAL: NITRIL O;1: TCM; MODEL 1: 125X155X14

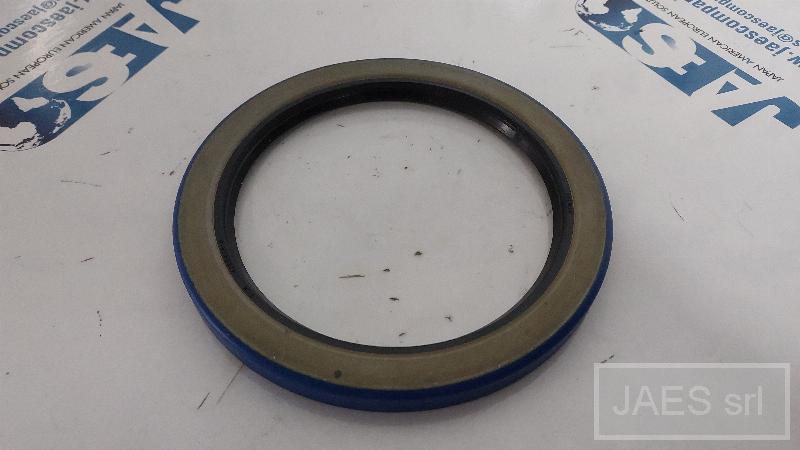

HYDRO-PNEUMATIC ELEMENT FOR SPECIAL MACHINES; COMPONENT: SEAL; MACHINE: BAND SAW REDUCER, MAKE: HEM-SAW, TYPE: H260HM-DC-CTS, SERIAL NO.: 1284118; NBR (BUNA RUBBER)/CARBON STEEL OIL SEAL, SA TYPE, 4.250" X 5.501" X 0.437"; MANUFACTURER 1: TCM; PART NO. 1: 42554SA-H-BX

PIN: TCM BELT WRAPPER MATERIAL: S355J2G3 FABRICATE PER DRAWING NO. 21129033

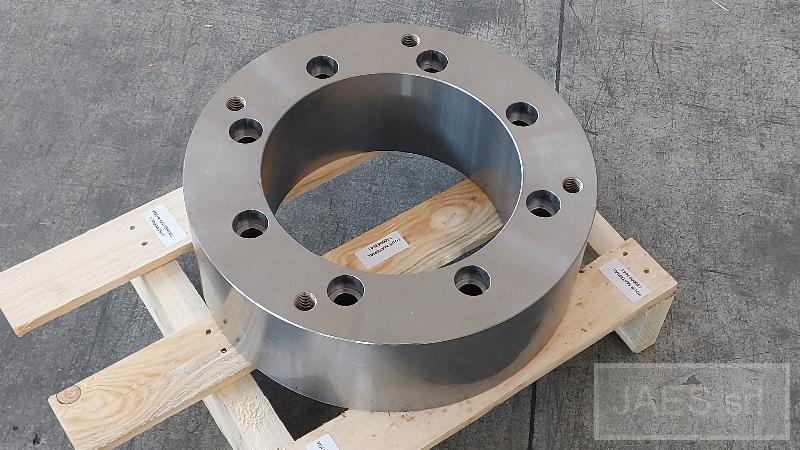

FLANGE: ADAPTER MATERIAL: S235JR N TCM EXIT CC DRIVE PER DRAWING 21169600 DRAWINGS: 39082656030102_21169600A01 (2).TIF 21169600-ADAPTER FLANGE_0001_01_000_C.DWG

RING; RING TYPE: THRUST OUTSIDE DIAMETER: 345MM INSIDE DIAMETER: 268MM THICKNESS: 40MM BASE MATERIAL: 1045 HEAT TREATMENT: N/A BASE MANUF PROCESS: MACHINING WEIGHT: 15.000KG COMPLEMENTARY INFO: TCM DRIVE SPLIT RING ASSEMBLY DRAWING 21087318 - MOD REV A TECHNICAL DOCUMENTS: TCM SPLIT RING 21087318 - MOD.PDF
