Katalog TSURUMI

BLEED PUMP

PUMP B-10536101

  Tekniskt datablad

PUMP SUMP:1HP,115 VOLT

PUMP BORE 2 60HZ, 3-PHASE, FLOW 132GPM 3HP, 440 VOLT, 4.5A, 2-POLE

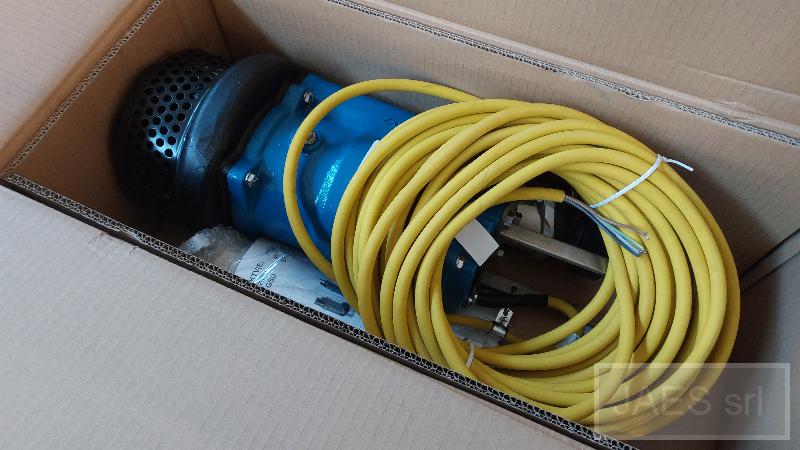

E/PUMP "TSURUMI" KTZ 31.5 WITH THE FOLLOWING CHARACTERISTICS: - OUTLET DIAMETER 80MM (3") - FLOW RATE 670 L / MI

"TSURUMI" KTZ 31.5 E/PUMP WITH THE FOLLOWING CHARACTERISTICS: - OUTLET DIAMETER 80MM (3") - FLOW RATE 670 L/MIN - POWER VOLTAGE 400VAC - POWER 1.5 KW - DRY WEIGHT 30.0 KG - DIAMETER 216 MM - HEIGHT 478 MM AS PER TECHNICAL DATA SHEET ***** TECHNICAL DATA SHEET: FLOW RATE M3/H 40.20 HEAD MT 25 LIQUID CONVEYED WATER LIQUID TEMP. CONVEYED TEMP. 40 PUMP BODY CAST IRON GG 25 IMPELLER CAST IRON GG 25 FOOT SEAL-FREE COUPLING ON SHAFT DOUBLE SEAL SIC/SIC TYPE CONNECTIONS THREADED CONNECTION SIZE DN DN 80 ELECTRIC MOTOR 2-POLE POWER KW 1.50 VOLTAGE 400 V INTERMITTENT DUTY WITH INVERTER INSULATION CLASS F PROTECTION IP 68
