VALVE 3 150RF

BALL VALVE TYPE: FLANGED NOMINAL DIAMETER: DN 200 SERIES: 150 END 1: FLANGED END 2: FLANGED ACTUATION: MANUAL VALV. SPHERICAL DN200 FLANGE S-150 - ZAA 900 V006- PN16 - BODY 10619 - BALL 14408- STEM 14401 - SEAT PTFE - VALVE MODEL Z04TTTG- SERIAL NR 201909100989 BRAND: PEKOS MODEL: ZO4TTTG- DN 200 S-150 -PEKOS SERIAL NR 201909100989 EQUIPMENT: GAS COMPRESSORS BRAND: ASPRO MODEL: WHC 75H2 TAG :ZAA-901/902/903/904 DESCRIPTION IN ENGLISH:

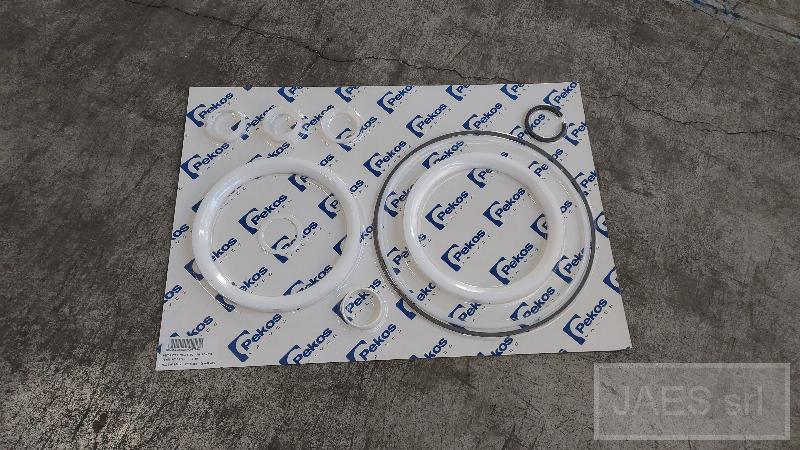

MAINTENANCE KIT TYPE: SPARE PARTS KIT (SOFT PARTS) APPLICATION: PEKOS BRAND BALL VALVE PEKOS BRAND BALL VALVE, FIGURE FIG. ZU04 TTTG, SIZE DN 150, CLASS PN 16, CONNECTION FLANGED DIN RF, BORE, TOTAL BORE, CONSTRUCTION: BALL, FLOATING, SOFT SEAT, BODY MATERIAL 1.0619, BALL MATERIAL 1.4408, SHAFT MATERIAL 1.4401, SEAT MATERIAL PTFE (T), PACKING PTFE (T), SEALS PTFE (T)/GRAPHITE (G), SCREWS A2-70, FINISH/PAINT: PHOSPHATED, ACTUATION: FREE SHAFT BRAND: PEKOS MODEL: ZU04 TTTG EQUIPMENT: TAG: ZAB901 ENGLISH DESCRIPTION:

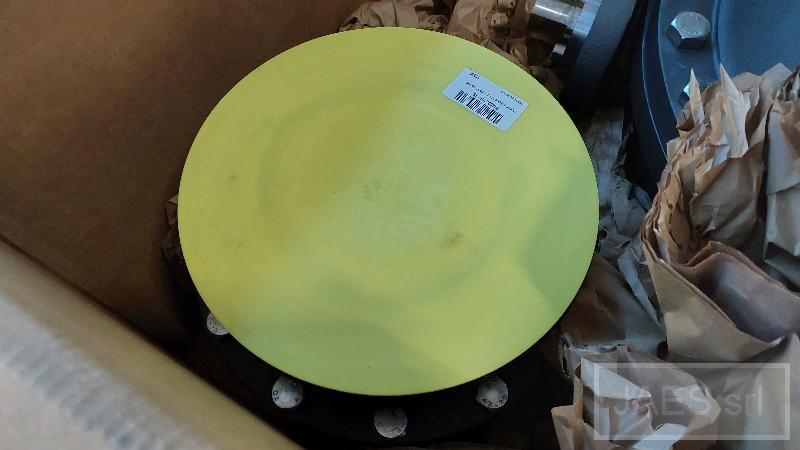

VALVE DIMENSION: ZU04 TTTG MATERIAL: STAINLESS STEEL APPLICATION: FLAMMABLE GAS VENTING PEKOS BRAND BALL VALVE, FIGURE: ZU04 TTTG, SIZE DN 150, CLASS PN 16, CONNECTION FLANGED DIN RF, BORE, FULL BORE, CONSTRUCTION: BALL, FLOATING, SOFT SEAT, BODY MATERIAL 1.0619, BALL MATERIAL 1.4408, STEM MATERIAL 1.4401, SEAT MATERIAL PTFE (T), PACKING PTFE (T), GASKETS PTFE (T)/GRAPHITE (G), SCREWS A2-70, FINISH/PAINT: PHOSPHATED, ACTUATION: FREE STEM BRAND: PEKOS MODEL: FIG. ZU04 TTTG EQUIPMENT: TAG: ZAB901 ENGLISH DESCRIPTION:

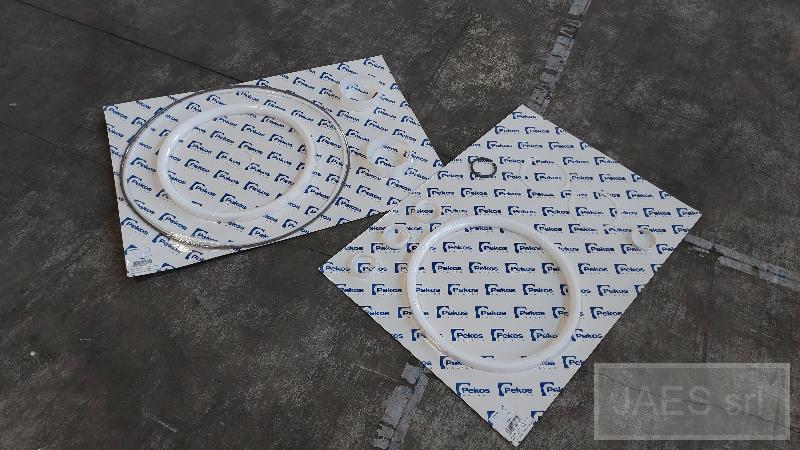

MAINTENANCE KIT TYPE: SPARE PARTS KIT (SOFT PARTS) PEKOS BRAND BALL VALVE APPLICATION: ZG04 TTTG VALVE SPARE PARTS KIT (SOFT PARTS) FOR PEKOS BRAND BALL VALVE FIGURE FIG. ZG04 TTTG SIZE DN 300 CLASS PN 16 CONNECTION FLANGED DIN RF BORE FULL BORE CONSTRUCTION GUIDED BALL CLOSURE SOFT SEAT BODY MATERIAL 1.0619 (CARBON STEEL) BALL MATERIAL 1.4408 (STAINLESS STEEL) SHAFT MATERIAL 1.4401 (STAINLESS STEEL) SEAT MATERIAL PTFE (T) PACKING PTFE (T) SEALS PTFE (T)/GRAPHITE (G)/ SCREWS A2-70 FINISH / PAINT PAINTED STD PEKOS ACTUATION FREE SHAFT BRAND: PEKOS MODEL: ZG04 TTTG EQUIPMENT: TAG: ZAB901 ENGLISH DESCRIPTION:

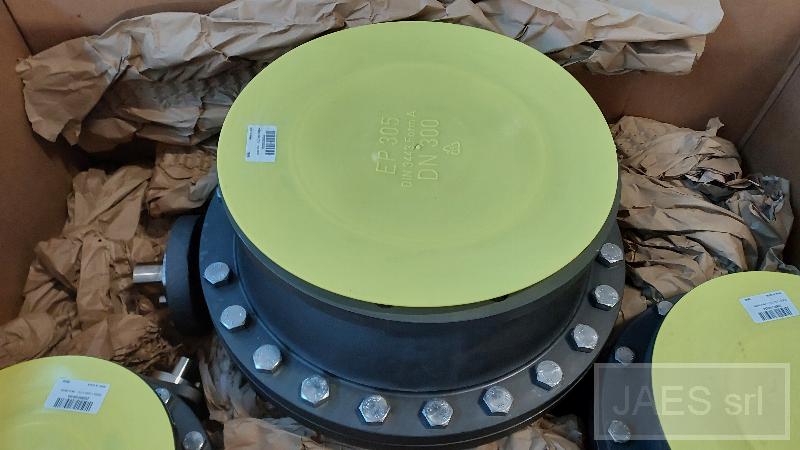

VALVE DIMENSION: DN 300 MATERIAL: STAINLESS STEEL APPLICATION: FUEL GAS SUPPLY SHUT-OFF PEKOS BRAND BALL VALVE 12.420.83 12.420.84 FIGURE FIG. ZG04 TTTG MEASUREMENT DN 300 CLASS PN 16 CONNECTION FLANGED DIN RF PITCH FULL PITCH CONSTRUCTION GUIDED BALL CLOSURE SOFT SEAT BODY MATERIAL 1.0619 (CARBON STEEL) BALL MATERIAL 1.4408 (STAINLESS STEEL) SHAFT MATERIAL 1.4401 (STAINLESS STEEL) SEAT MATERIAL PTFE (T) STUFFING PTFE (T) GASKETS PTFE (T)/GRAPHITE (G)/ BOLTS A2-70 FINISH / PAINT STD PEKOS PAINTED SHAFT FREE SHAFT ACTUATION BRAND: PEKOS MODEL: ZG04 TTTG EQUIPMENT: TAG: ZAB901 ENGLISH DESCRIPTION:
