دليل السلع AUTOBLOK

SELF-CENTERING BEZEL

CHUCK FOR LATHE NOMINAL 215MM QUANTITY OF JAWS 3 MOUNTING TYPE BOLT WITH 6 SCREWS WEIGHT 19.5KG ARMORED PLATE WITH VITON SEALS

HYDROPNEUMATIC ELEMENT FOR SPECIAL MACHINES; COMPONENT: PNEUMATIC SUPPLY SEAL PLATE; MACHINE: PLATE SMW / AUTOBLOK BB-N ES 460-175-3; BRAND 1: SMW; PART NO. 1: 199761

CAO CHUCK SMW BB-500-205-3 AUTOBLOK BB500-205-3CC 3/32 FL SMD AUTOMATIC SELF-CENTERING CHUCK, WITH 3 SERRATED JAWS 3/32”X90°, WITH BUILT-IN PNEUMATIC CYLINDER AND DISTRIBUTION, FLANGE CONNECTION, FEATURES AS FOLLOWS: • STROKE PER JAW 8.5 MM (ON THE RADIUS), • BAR PASSAGE 205 MM, • MAX. CLAMPING FORCE 210 KN • MAX. SPEED 1300 RPM, • MASS 230 KG. (WITHOUT CLAMPS) COMPLETE WITH: • 1 SET OF SOFT CLAMPS • N. 2 3/8” FITTINGS ON THE FLOATING RING

CARTS; MACHINE: ISLAND 1; ISLAND 2; REPLACEMENT PARTS FOR DRILEX AP-M-215 PLATE AUTOBLOK PLATE CARRIAGE IN 3-PIECE SET; MODEL: AP-M-215

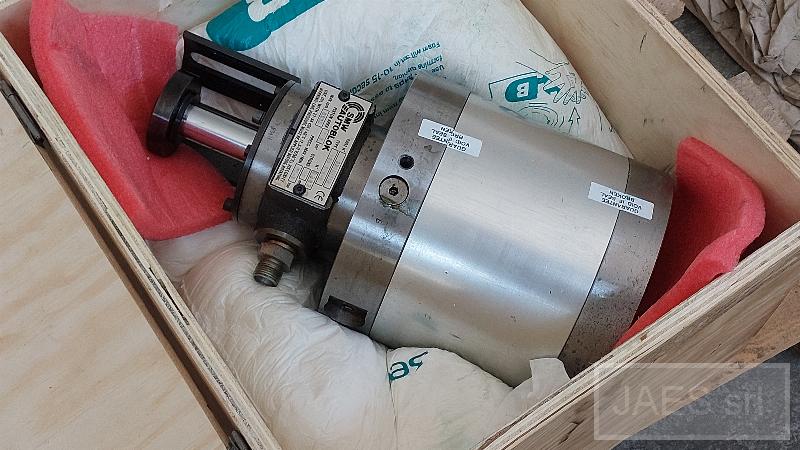

HYDRAULIC CYLINDER; TYPE: SPECIAL; PISTON SIZE: 125 MM; STROKE: 40 MM; ROD: 50 MM; MAXIMUM WORKING PRESSURE: 70 BAR; FLUIDS: OIL AND HYDRAULIC; DOUBLE ACTING; FOR DANOBAT LATHES

AUTC 215 AP NT 3GR SLEEVE
