دليل السلع NARA

اقتران رمح

GEAR COUPLING; TYPE: GEARS; INTERNAL DIAMETER-CUBE 1: 145 MM INTERNAL DIAMETER-CUBE 2: 140 MM; LENGTH: 656MM; MAXIMUM OUTER DIAMETER: 160 MM; REFERENCE DRAWING: SAM315236S ITEM NO. 2, 4

GEAR COUPLING; TYPE: GEARS; INTERNAL DIAMETER-CUBE 1: 73 MM INTERNAL DIAMETER-CUBE 2: 50 MM; LENGTH: 294MM; MAXIMUM OUTER DIAMETER: 75 MM; REFERENCE DRAWING: SSM18000S ITEM NO. 1, 3, 7; MOTOR-REDUCER

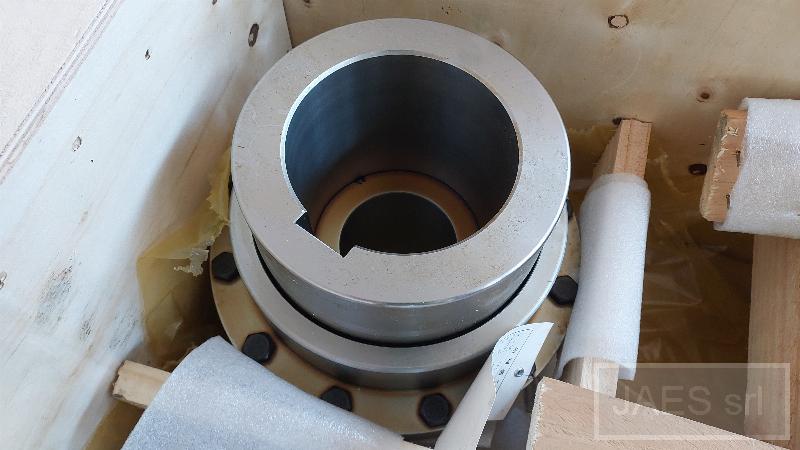

GEAR COUPLING; TYPE: GEARS; INTERNAL DIAMETER-CUBE 1: 90 MM INTERNAL DIAMETER-CUBE 2: 130 MM; MAXIMUM NOMINAL TORQUE: 2340 KGM; LENGTH D: 294 MM; MAXIMUM EXTERIOR DIAMETER: 280 MM; REFERENCE DRAWING: SSM28 000 SERIAL 032, 034; MAXIMUM SPEED: 25 RPM; DRAWING NIPPON STEEL ENGINE RING EEXX03JRS1614

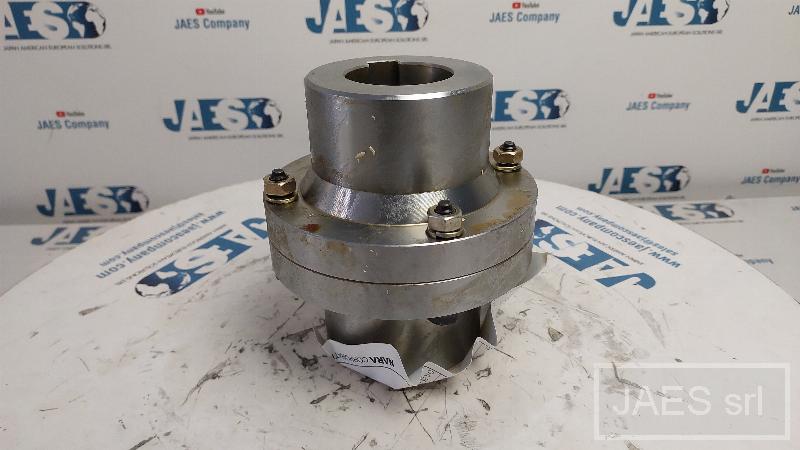

GEAR COUPLING INTERNAL DIAMETER-HUB 1: 46 MM INTERNAL DIAMETER-HUB 2: 46 MM; MAXIMUM NOMINAL TORQUE: 167.5 KGM; LENGTH D: 134 MM; REFERENCE DRAWING: EEM12500S; MAXIMUM SPEED: 1800 RPM

GEAR COUPLING WITH 1341 MM SPACER

GEAR COUPLING WITH 1553 MM SPACER

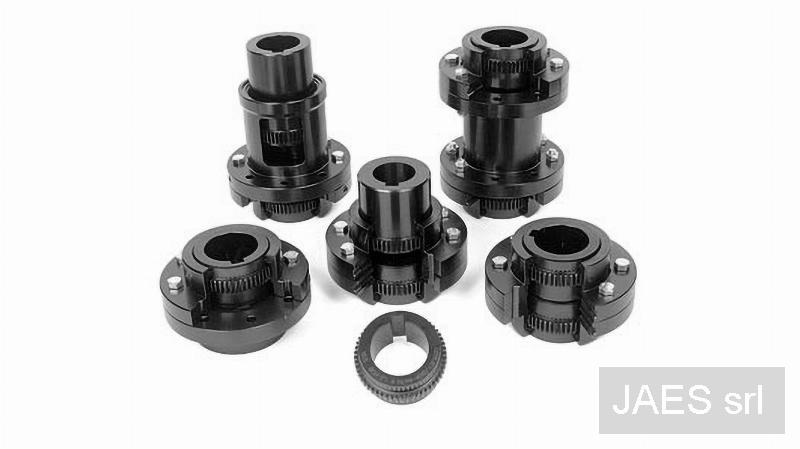

GEAR COUPLING WITH 3715 MM SPACER

GEAR COUPLING WITH 755 MM SPACER

GEAR COUPLING WITH 2700 MM SPACER

GEAR COUPLING; TYPE: GEAR WITH SPACER; INTERNAL DIAMETER-HUB 1: 140 MM; INTERNAL DIAMETER-HUB 2: 200 MM; MAXIMUM NOMINAL TORQUE: 9500 KGM; LENGTH: 3360 MM; MAXIMUM OUTER DIAMETER: 450 MM; REFERENCE DRAWING: CAM4502781S; MAXIMUM SPEED: 38.2 RPM; GEAR COUPLING WITH 2781 MM SPACER

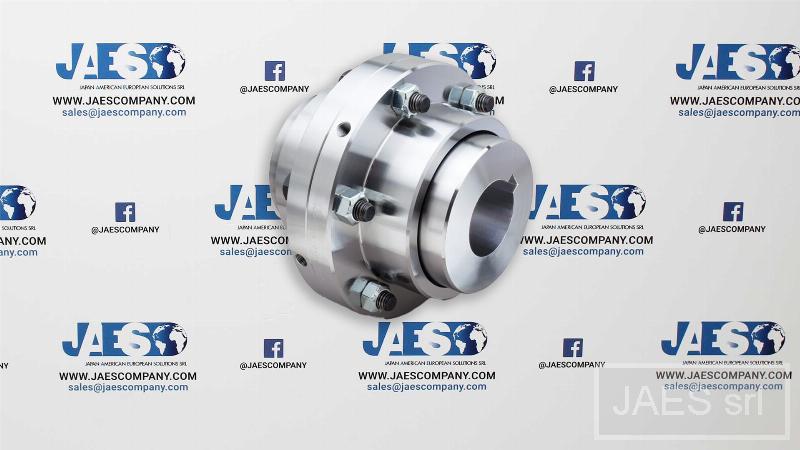

GEAR COUPLING; TYPE: GEAR WITH SPACER; INTERNAL DIAMETER-HUB 1: 140 MM; INTERNAL DIAMETER-HUB 2: 220 MM; MAXIMUM NOMINAL TORQUE: 13000 KGM; LENGTH: 864 MM; MAXIMUM OUTER DIAMETER: 500 MM; REFERENCE DRAWING: CAM500416; MAXIMUM SPEED: 34 RPM; GEAR COUPLING WITH 416 MM SPACER

GEAR COUPLING; TYPE: GEAR WITH SPACER; INTERNAL DIAMETER-HUB 1: 160 MM; INTERNAL DIAMETER-HUB 2: 220 MM; MAXIMUM NOMINAL TORQUE: 13500 KGM; LENGTH: 786 MM; MAXIMUM OUTER DIAMETER: 500 MM; REFERENCE DRAWING: CAM500338; MAXIMUM SPEED: 34.1 RPM

GEAR COUPLING; TYPE: GEAR; HUB 1 ID. DIAMETER: 85.69 MM; HUB 2 ID. DIAMETER: 55 MM; MAX. NOMINAL TORQUE: 1000 KGM; LENGTH: 236 MM; MAX. OUTSIDE DIAMETER: 224 MM; REFERENCE DRAWING: SS M22400 SERIAL 009, 035, 041, 051, 053, 067, 071, 090, 092; MAX. SPEED: 1050 RPM

GEAR COUPLING; TYPE: GEAR; HUB 1 INTERNAL DIAMETER: 175 MM HUB 2 INTERNAL DIAMETER: 220 MM; MAXIMUM NOMINAL TORQUE: 13000 KGM; UNIT LENGTH: 470 MM; MAXIMUM OUTER DIAMETER: 500 MM; REFERENCE DRAWING: CCM5 0000; MAXIMUM SPEED: 32.4 RPM

GEAR COUPLING; TYPE: GEAR WITH SPACER; INTERNAL DIAMETER-HUB 1: 175 MM; INTERNAL DIAMETER-HUB 2: 220 MM; MAXIMUM NOMINAL TORQUE: 13000 KGM; LENGTH: 1963 MM; MAXIMUM OUTER DIAMETER: 500 MM; REFERENCE DRAWING: CAM5001515; MAXIMUM SPEED: 30.6 RPM; GEAR COUPLING WITH 1515 MM SPACER

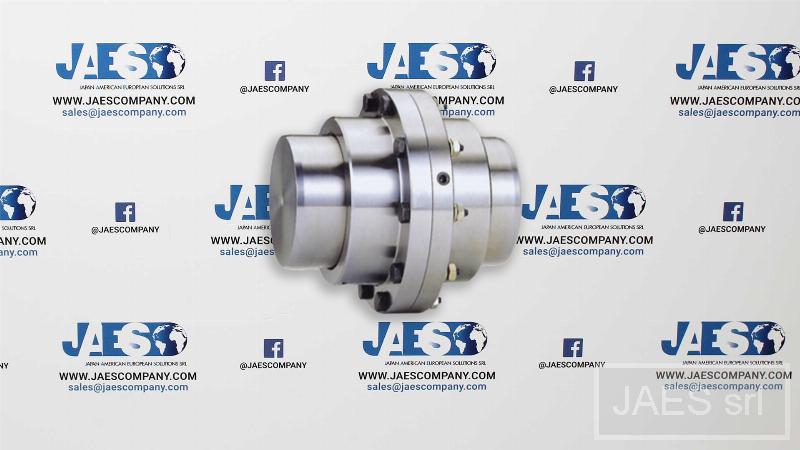

GEAR COUPLING; TYPE: GEAR; HUB 1 INTERNAL DIAMETER: 140 MM HUB 2 INTERNAL DIAMETER: 80 MM; MAXIMUM NOMINAL TORQUE: 3680 KGM; LENGTH: 950 MM; MAXIMUM OUTER DIAMETER: 315 MM; REFERENCE DRAWING: SAM315 610S; MAXIMUM SPEED: 77 RPM; WITH SPACER

GEAR COUPLING; TYPE: GEAR; HUB 1 INTERNAL DIAMETER: 175 MM HUB 2 INTERNAL DIAMETER: 160 MM; MAXIMUM NOMINAL TORQUE: 5550 KGM; MAXIMUM OUTER DIAMETER: 250 MM; REFERENCE DRAWING: SAM31510009S; MAXIMUM SPEED: 35 RPM; WITH SPACER: 1009 MM

GEAR COUPLING; TYPE: GEAR; HUB 1 INTERNAL DIAMETER: 110 MM HUB 2 INTERNAL DIAMETER: 140 MM; MAXIMUM NOMINAL TORQUE: 3680 KGM; LENGTH D: 869 MM; MAXIMUM OUTER DIAMETER: 315 MM; REFERENCE DRAWING: SAM31 5529S; MAXIMUM SPEED: 76 RPM; WITH SPACER: 529 MM

GEAR COUPLING; TYPE: GEAR; HUB 1 INTERNAL DIAMETER: 110 MM HUB 2 INTERNAL DIAMETER: 140 MM; MAXIMUM NOMINAL TORQUE: 3680 KGM; LENGTH D: 1095 M; MAXIMUM OUTER DIAMETER: 315 MM; REFERENCE DRAWING: SAM31 5755S; MAXIMUM SPEED: 34 RPM; WITH SPACER: 755 MM
