NON-RETURN VALVE WITH RUBBER INSERT

  ورقة البيانات الفنية

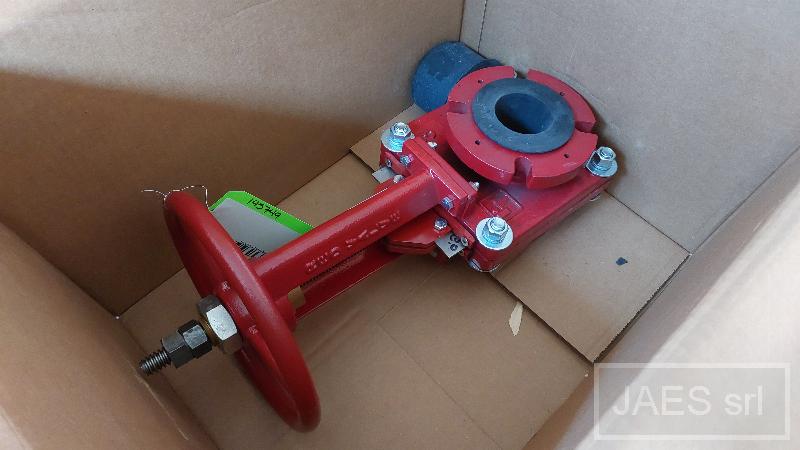

OTHER TYPE VALVE; TYPE: KNIFE GATE VALVE; NOMINAL SIZE: 3 "; MAXIMUM WORKING PRESSURE: 150 PSI; MOUNTING TYPE: FLANGED; FLUIDS: SLUDGES; "HIGH PERFORMANCE KNIFE VALVE MODEL DX, FLANGED MOUNTING COMPATIBLE WITH ANSI B16.5 CLASS 150 #, SIZE: 3 INCHES, DUCTILE IRON BODY WITH STANDARD COATING FOR MINING APPLICATIONS, HAS FREE DISCHARGE DRAIN PORT, TWO-POST YOKE, HIGH ABRASION RESISTANT EPDM SLEEVES, FULL PORT DESIGN, FREE OF OBSTRUCTION WITH SOLID CARBON STEEL CORE, UHMWPE FLANGE RETENTION, TIGHT SHUT OFF TYPE SEAL, BIDIRECTIONAL, 316 STAINLESS STEEL BLADE WITH DOUBLE BOLTED CLEVIS, STAINLESS STEEL STEM, EPDM SECONDARY SEAL FOR CLEANING AND LUBRICATION OF THE BLADE, HANDWHEEL OPERATED."; BRAND 1: RED VALVE; PART NO. 1: DX-003; MODEL 1: DX SERIES

PINCH VALVE; NOMINAL SIZE: 1-1/2 "; MAXIMUM OPERATING PRESSURE: 165 PSI; ASSEMBLY TYPE: FLANGED X FLANGED; FLUIDS: WATER/COOL ANT; 1-1/2" SIZE, TYPE A SERIES, ALUM. BODY. SLV/SEAT: PGR MODEL : TYPE A
