دليل السلع SIEMAG

مبادل حراري

تحميل خلية

ROLLER SHUTTER COVER

تحميل خلية

MECHANICS FOR ENCODER SL3010-X1-GS130-K-F

RIBBON DRIVE SHAFT

COUPLING: WITH BRAKE DISK MATERIAL: SEE DRAWING REFERENCE SMS SIEMAG DRAWING 20579554

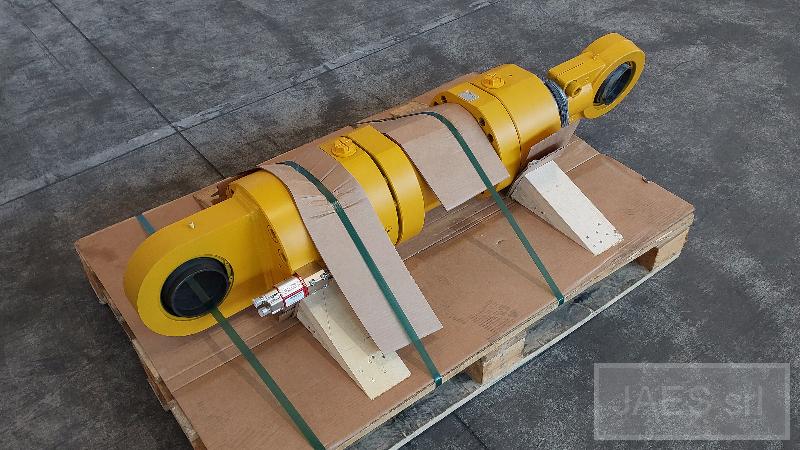

CYLINDER:HYDRAULIC TYPE: DOUBLE ACTING BORE DIAMETER: 160 MM STROKE: 180 MM MOUNTING TYPE: MP5 PRESSURE RATING: 180 BAR PORT SIZE: G1 1/4 SHAFT DIAMETER: 100 MM CERTIFICATION/STANDARD: ISO 6022 COMPLEMENTARY INFO: WITH CYLINDER ROD BELLOWS INSTALLED 13 SERIES MM NUMBER CREATED FOR THIS 10 SERIES 1300068145 TECHNICAL DOCUMENTS: HYDRAULIC_CYLINDER_PAINT_SPEC.PDF RAL-1007 COLOR.PDF DOC-11003017.PDF 22425434B1_B_0.TIF BOM 00109376.001.004.PDF MANUFACTURER 1: SIEMAG MANUF. PART NO. 1: .00109376.001.004

O-RING; INTERIOR DIAMETER: 280 MM; OUTER DIAMETER: 295.1 MM; THICKNESS: 6.3MM; BRAND 1: BUSAK SHAMBAN; N-PART 1: RT0302800-T46N; BRAND 2: EMAG; N-PART 2: 3648912

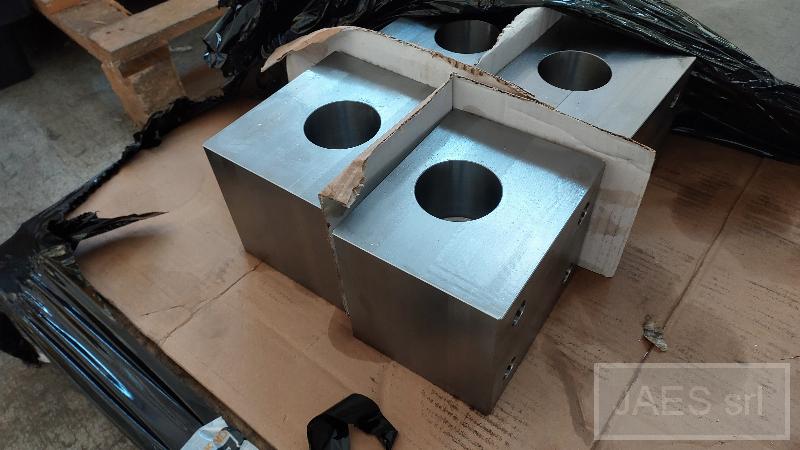

BLOCK;AXLE BLOCK;L:156MM;W:126MM MATERIAL TEXT: BLOCK; TYPE: AXLE BLOCK LENGTH: 156MM WIDTH: 126MM THICKNESS: 125MM BASE MATERIAL: S355J2G3 TECHNICAL DOCUMENTS: ENTRY PINCH AXLE.TIF ENTRY PINCH BUSHING.TIF MANUFACTURER 1: SMS SIEMAG MANUF. PART NO. 1: 22401052
