دليل السلع SMS DEMAG

اقتران رمح

اقتران رمح

COUPLING TYPE:SOLID; BORE:80 MM H7;KEYWAY:22P9;DRAWING: 22537620;SMS

مضخة

00110570.001.003.045 SMS COUPLING QUICK DISCONNECT OUTSIDE DIAMETER :150MM BORE:90MM

مروحة 0204004-GR-360

COUPLING, SHAFT:TYPE: FLANGED BORE: 80MM K7 OUTSIDE DIAMTER: 225MM KEYWAY: 22 P9

KMA 219 N63 MAGNETIC CHAIN SEPARATOR

GEAR;BOX;DETACHABLE;WORM TYPE DESCRIPTION: DETACHABLE WORM G EAR ASSEMBLY TYPE: 52.106.06.0 0, I=40:1 PART NO. 20488502

TURN PINION; MACHINE: CCD2 TURRET ROTATION SYSTEM

MOLD EXPANDER CASING; MACHINE: CCD2

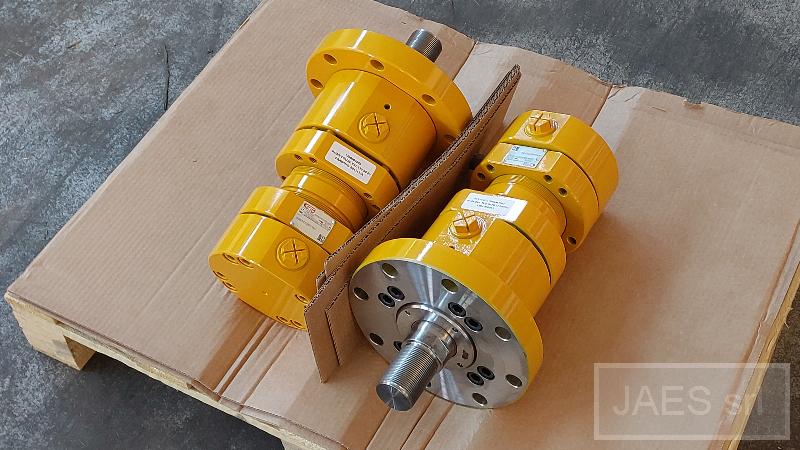

CYLINDER, HYDRAULIC: DIAMETER PISTON: 80MM DIAMETER SHAFT: 50MM STROKE: 20MM LENGTH: 325MM SYSTEM PRESSURE: 140 BAR BLIND MNTING STYLE: NONE ROD MNTING STYLE: FLANGE CUSHIONING: YES TYPE: DOUBLE ACTING SEALS: VITON PAINT COLOR: RAL 190 80 20

EXPANSION MAX LENGTH: 1040MM MIN LENGTH: 290MM MATERIAL: KEVLAR-FABRIC DRAWING: 21086012

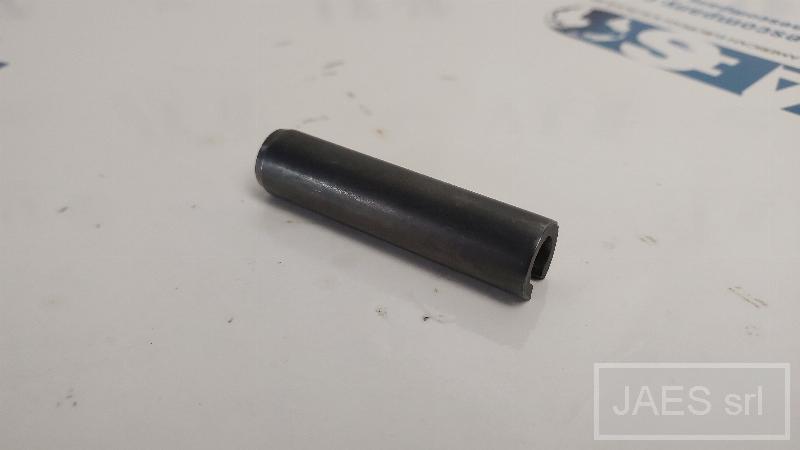

PIN:SPRING,(ISO 8752 14 X 60) MATERIAL TEXT: PIN: SPRING (ISO 8752 14 X 60) MATERIAL: FST 56SI7 SMS DEMAG PART NO. M9729758 OR EQUIVALENT, IF APPROVED BY PURCHASING IN WRITTEN FORM IN ADVANCE DRAWING: 20290713.PDF SPRING PIN PIN SHAPE D.PDF

LUVA TUBE; MACHINE: CCD2; 21177992 SHEET 1 AND 2

MOTOR:AC TYPE: GEARMOTOR POWER RATING: NA SPEED RATING: NA VOLTAGE RANGE: 480 FREQUENCY RATING: 60 NUMBER OF PHASE: 3.000 COMPLEMENTARY INFO: MOTOR WITH GEARBOX AME20TD TECHNICAL DOCUMENTS: 1300002128.PNG DEMAG CYLINDRICAL ROTOR MOTOR ZBF 63 A 8.PDF MANUFACTURER 1: SMS DEMAG MANUF. PART NO. 1: AME20TD ZBF 63 A8/2 B003
