Catalog R. Stahl

STOP BUTTON, SERIES CONSIG 8040, TYPE EMERGENCY STOP FUNCTION, CURRENT RATING 10 A, CONTACT CONFIGURATION 1 NC, ACTUATOR POSITION STAY PUT.

PANEL LOCAL

JUNCTION BOX STAHL 8118/121-805 2XM25 115X115X64, 3-ENTRY II 2 G EX EB IIC T6 / T5 GB 2X M25X1.5 GLAND M25X1.5 EX E PLUG

JUNCTION BOX STAHL 8118/121-805 3XM25 115X115X64, 3-ENTRY II 2 G EX EB IIC T6 / T5 GB 3X M25X1,5 GLAND

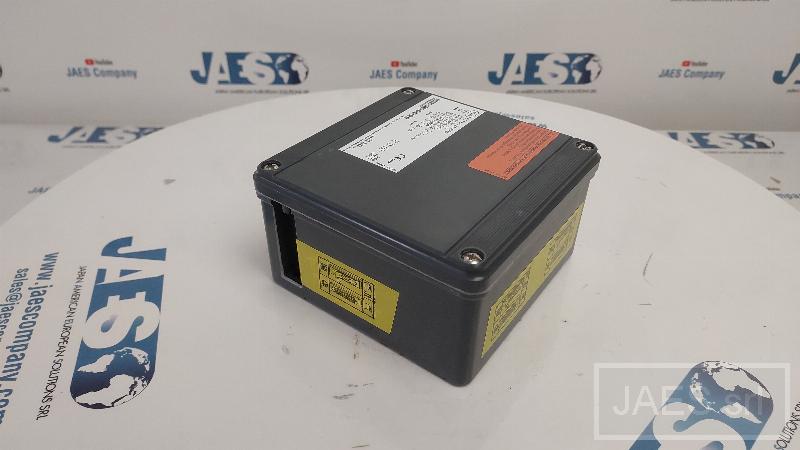

JUNCTION BOX STAHL 8118/121-806 4XM25 115X115X64, 4-ENTRY II 2 G EX EB IIC T6 / T5 GB 4X M25X1.5 GLAND

JUNCTION BOX ACCORDING TO THE DRAWING TO Z443/461039 (3700DR60055) TYPE DESIGNATION: 8146/1085 CONSTRUCTION ACC. TO: EXPLOSION PROTECTION (GAS): EX II 2 G EX EB IA IB IIC T6 GB EXPLOSION PROTECTION (DUST): EX II 2 D EX TB IIIC T80?C DB ATEX CERTIFICATE: PTB 01 ATEX 1016 DEGREE OF PROTECTION (IP): IP66 AMBIENT TEMPERATURE: -40 ?C .... 40 ?C ENCLOSURE MATERIAL: POLYESTER RESIN GLASS FIBRE-REINFORCED RATED VOLTAGE [UN]: 690 V; 60 V CONNECTION CROSS-SECTION: 6 MM2; 4 MM2 NOTES: FITTING POSITION: SIDE D BOTTOM RAIL HORIZONTAL 6 LINE-UP TERMINAL UT 6 FBS 6-8 - PLUG-IN BRIDGE LABELLING: " " 6 LINE-UP TERMINAL UT 6 BU FBS 6-8 - PLUG-IN BRIDGE LABELLING: "-" 1 ASSEMBLY KIT 8146 MOUNTING RAIL 2X 13MM 221263 1 TS35 137983 1 ASSEMBLY KIT 8146/-..3 PE/N-RAIL 120MM 221261 1 FITTING POSITION: VERTICAL EARTHING RAIL, 12X10 MM2 COPPER UNCOATED, 8146 136674 6 SIDE: BOTTOM 8161/7-M25-1707 CAB.GLD. BK 229918
