Catalog Tschan

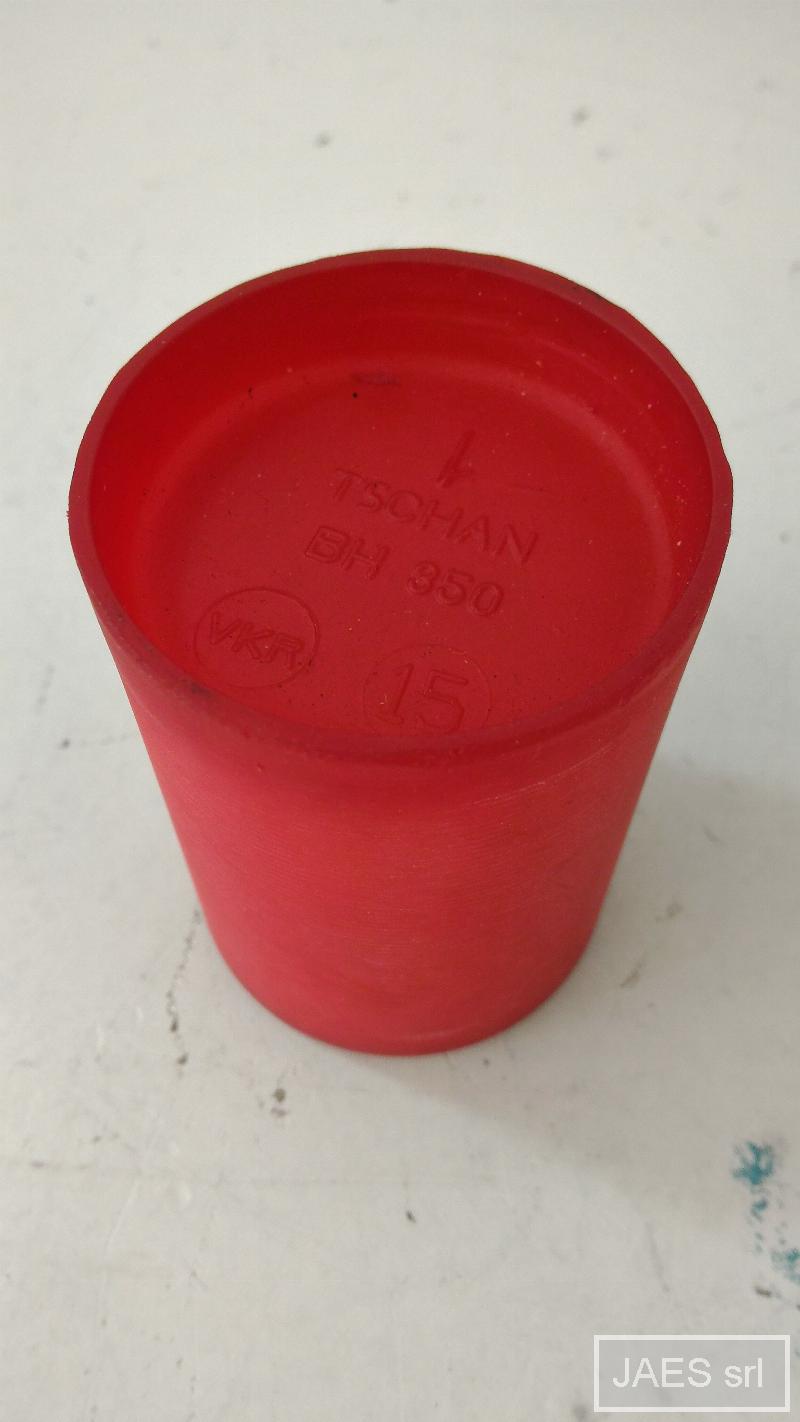

ELASTIC ELEMENTS FOR JOINT BH350

ELASTIC COUPLING

KIT ELASTIC ELEMENTS

RETAINING RING

O-RING

PISTON RING, SPLIT RING

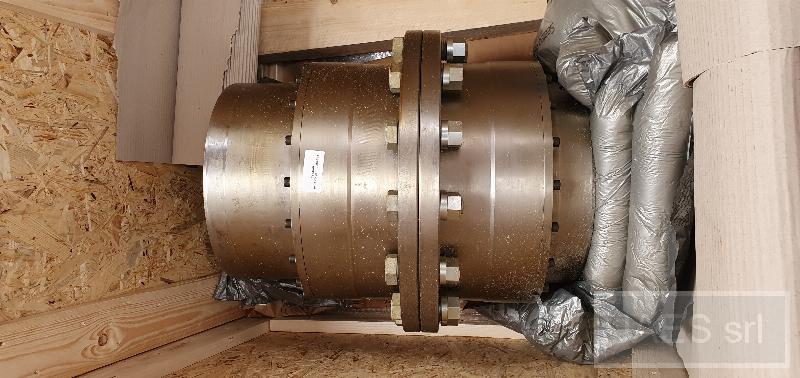

COUPLING, TYPE GEAR, COUPLING COMPLETE WITH BOLT AND SEAL KIT, BORE GEAR BOX SIDE-180 H6 PULLY SIDE 220 H6.

COUPLINGS O 110/120

PISTON RING

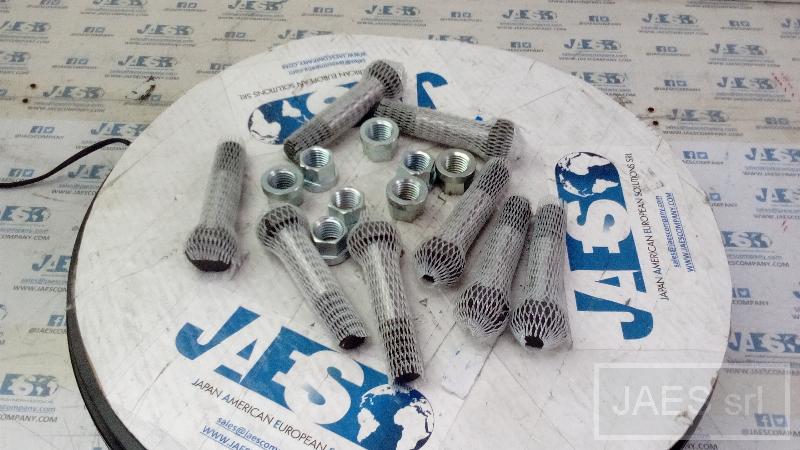

COUPLING BOLTS AND NUT KIT

COUPLING E-148, BRIDLES, L1 L3 DIMESIONS 163.5 X 148 X 148 COMPLETE WITH FLEXIBLE INSERT

COUPLING FLEXIBLE TYPE ROLLASTIC SIZE R100 MAX.SPEED 5900 RPM MAX.TOURQUE 290NM PART NO 3003010R00 FLS PART NO 2462214 FLS DWG 7.000033 FOR ROTARY AIR LOCK

ELASTIC SPACER RING VK60D

ELASTIC SPACER RING VK60D

BARREL COUPLING HI-BAY2 TSCHAN TYPE TK2600 SHAFT DIAMETER 230MM WITH ONE KEYWAY

MINIATURE COUPLING; TYPE: MINIATURE; INTERNAL DIAMETER-CUBE 1: 6 MM; INTERNAL DIAMETER-CUBE 2: 6 MM; MAXIMUM NOMINAL TORQUE: 2.2 NM; LENGTH: 30MM; MAXIMUM OUTER DIAMETER: 25 MM; MAXIMUM SPEED: 10000 RPM; MATER IAL ALUMINUM; WK1025-6MM-6MM MODEL PF-K ALUMINUM (AL)

COUPLINGS EXTERNAL DIAMETER 60 MM LENGHT 104MM

MINIATURE COUPLING; TYPE: FLEXIBLE ELASTIC METAL SLEEVE; INTERNAL DIAMETER-HUB 1: 14 MM; INTERNAL DIAMETER-HUB 2: 14 MM; MAXIMUM NOMINAL TORQUE: 25 NM; LENGTH: 38 MM - 40 MM; MAXIMUM OUTER DIAMETER: 30 MM; REFERENCE DRAWING: N/A; MAXIMUM SPEED: 6000 RPM; MINIATURE TYPE; 0.4 HP @ 100 RPM. STAINLESS STEEL MATERIAL: WK1030-14MM-14MM MODEL PF-K STAINLESS STEEL (VA)

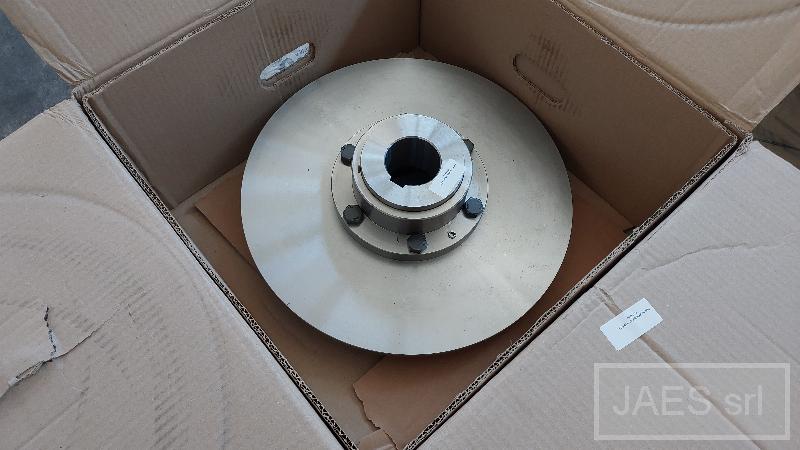

COUPLING:TS CHAN ZEAUUK-BS 130 E23 MATERIAL TEXT: COUPLING: TYPE: GEAR COUPLING COMPLETE WITH BRAKE DISK, BOLT AND SEAL KIT BORE: A-70 K7 B- SIDE 80 K7 DO NOT SUBSTITUTE TS CHAN PART NO. ZEAUUK-BS 130 E 23 DRAWING: 22578346.PDF (TS CHAN DRAWING:XZ29134050 A SMS REF DRAWING NUMBER 22578346)

INSERT:COUPLING,TSCHAN S260 MATERIAL TEXT: COUPLING: TYPE: INSERT INSERT SET FOR TSCHAN SIZE S260 COUPLING TSCHAN PART NO. S260 OR EQUIVALENT, IF APPROVED BY PURCHASING IN WRITTEN FORM IN ADVANCE
